Replaces OEM 942-04244A
Factory code 942-04244A — made in our own plant from 40Mn manganese steel, heat-treated cutting edge, batch hardness tested at 45–50 HRC.

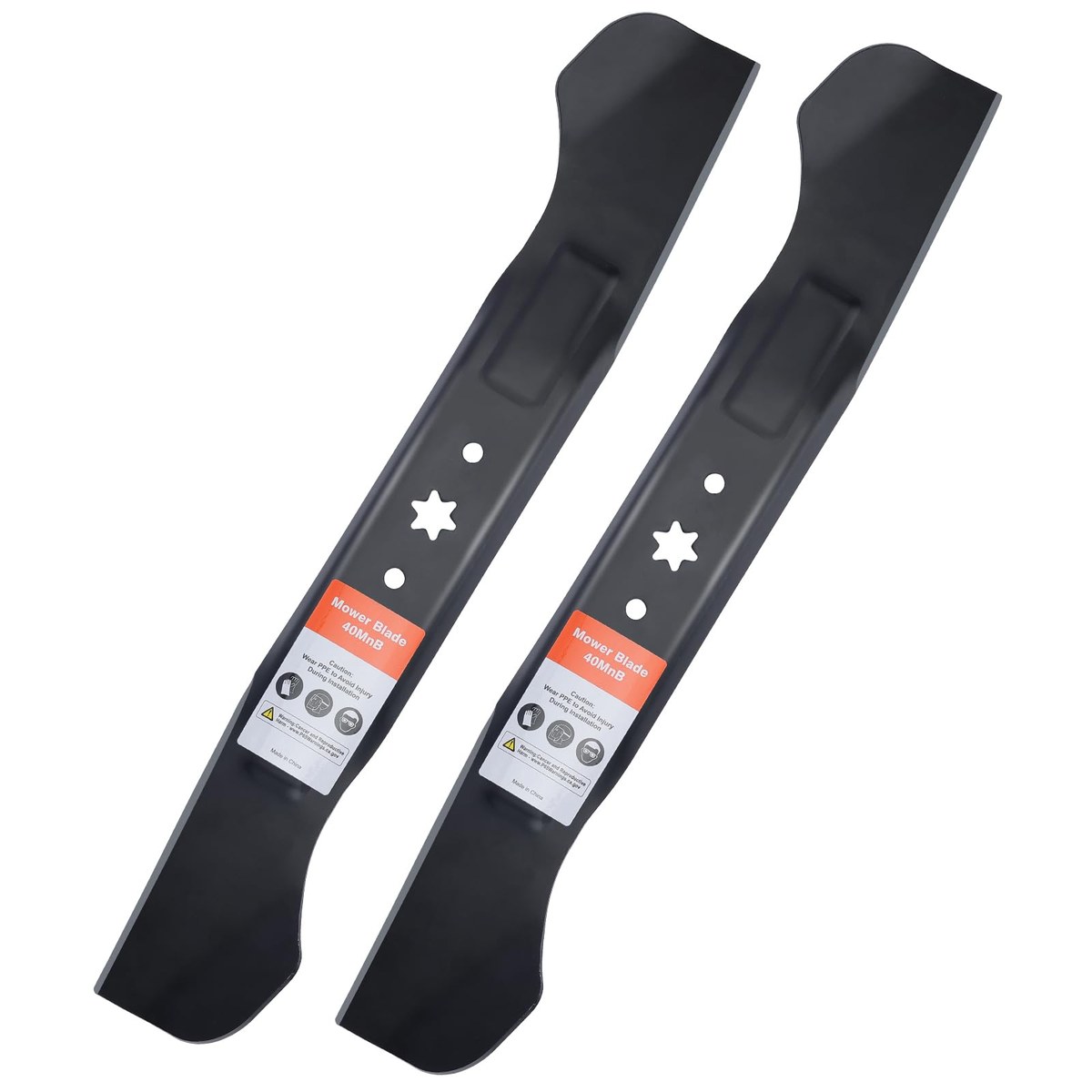

Photos are of our own production parts — the same blades we supply through our retail programme. The dimension drawing is generated from the published specifications. Brand and model names are for fitment reference only.
Part Specification
| Material | 40Mn manganese steel |
| Hardness | 45–50 HRC |
| Deck size | 46" |
| Center hole | 6-point star |
| Air lift | 1-3/8"(35mm) |
| Blade type | High Lift |
| Application | Lawn tractor |
| Length | 23-1/4"(590mm) |
| Width | 3-1/32"(77mm) |
| Thickness | 9/64"(3.6mm) |
| Inner box | 605*100*40 |
| Carton | 620*223*142 |
| Carton qty | 6 sets / carton |
| Pack weight | 2.56 kg |
| Min. order | 300 pcs / SKU |
Pricing is quoted per order — FOB / CIF / DDP by quantity and destination port. Ask for volume price breaks with your enquiry.
Cross-referenceReplaces these part numbers
Which machines it fits
Type your mower model below to confirm this blade fits — before you enquire.
Fitting & ordering notes
- Check the centre hole first. This blade mounts on a 6-point star spindle — if the hole pattern on your old blade differs, it will not seat.
- Packaging. Ships in MowForge export packaging marked with our code 942-04244A — the cross-reference numbers above are for ordering convenience only.
- Finish. Cutting edges arrive with a protective paint coating for sea freight and handling; the coating wears off after the first few mows.
- Quality records. Every batch is hardness-sampled into the 45–50 HRC window and dimension-inspected before packing — inspection records ship with the order on request.
- OEM/ODM. Laser marking, private labels and retail or bulk packaging are available on this part.
Get a price for this blade
Send your quantity and we reply within 48 hours with price, MOQ and lead time.
Need a Different Spec?
Send your sample, drawing or part number — quote within 48 hours, including tooling cost for new profiles.
Questions buyers ask about this blade
Will this blade fit my mower?
It fits Cub Cadet, Troy-Bilt, MTD machines with 46" decks, including LT46, LX46. The center hole is 6-point star, so check your spindle pattern matches before ordering.
Which part numbers does it replace?
It is a direct replacement for 942-04244A, 742-04290, 742-04290A, 942-04290, 742-04244, 742-04244A and 1 more.
What steel and hardness is it made to?
40Mn steel, hardened to 45-50 HRC. Batch hardness testing runs in-house and a material certificate ships with the order.
What is the minimum order quantity?
300 pcs per part number. Standard sizes go through our normal production window; non-standard sizes are quoted against your drawing.
